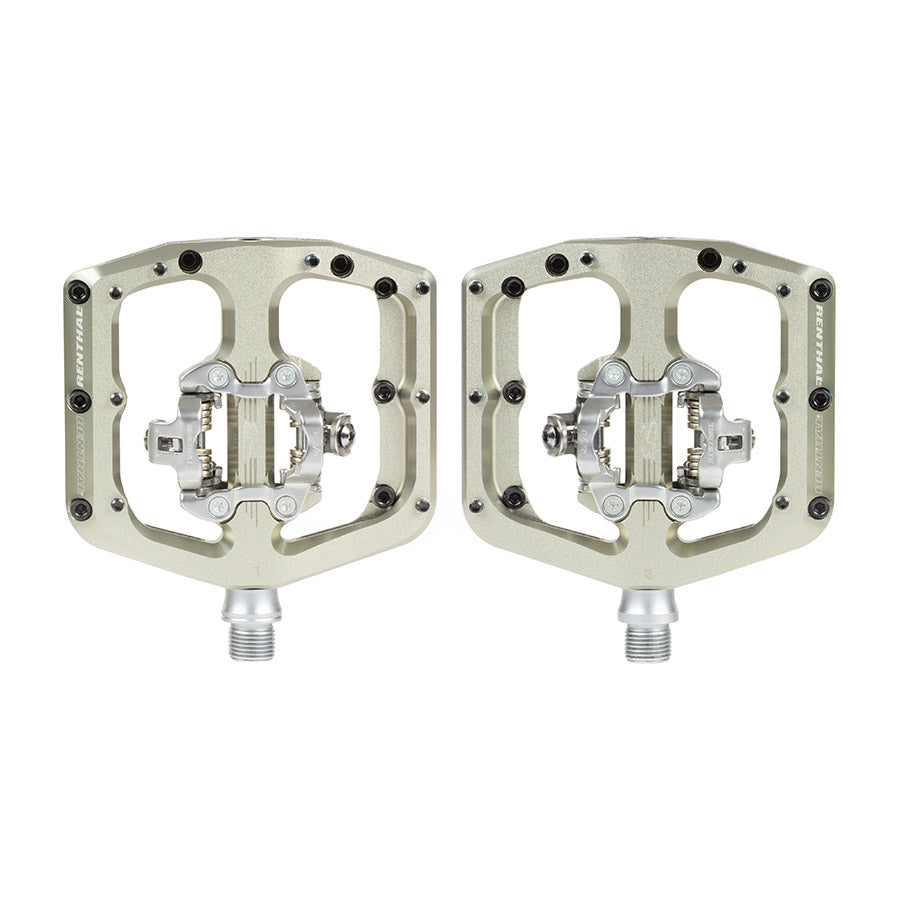

The new Revo-DHC is a downhill race pedal which gives all the control benefits of a flat pedal, with the security and efficiency of a clip pedal. Extra large 104 x 111mm 6061 body, with CNC machined finish. Adjustable pin height for shoe compatibility - 1.5mm to 5.5mm in 1mm increments. Proprietary Renthal binding, with easy-entry geometry. Super wide range of tension adjustment, for all preferences and uses. Triple cartridge bearings, mounted outboard for ground-strike durability. Inboard Igus bush with Patent Pending Renthal easy service axle system. O-ring sealed end cap and full contact wiper seal, inboard. 55mm crank to binding distance (same as the Revo-TRC). SPD cleat compatible (supplied with Renthal cleat). With standard pin configuration, 622g a pair.
| Cleat Compatibility |
SPD |
| Color |
Gold |
| Pedal Bearing |
Sealed bearings and Igus bushing |
| Pedal Material |
Aluminum |
| Spindle Material |
Cr-Mo |
| Pedal Weight |
622g |
| Pedals Thread |
9/16 |
| Primary Color |
Gold |
