Di2 interanl cable routing
Thru-axles in front and rear
Rack and fender mounts help to keep things dry and expand the load-carrying capacity
All-carbon fiber Ritchey Adventure Fork with multi-purpose mounts on the legs
Clearance for 700c x 48mm or 650b x 2.0in tires

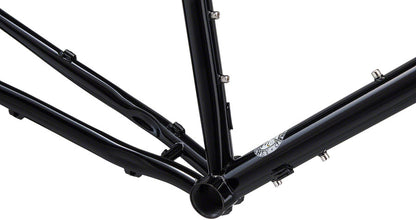

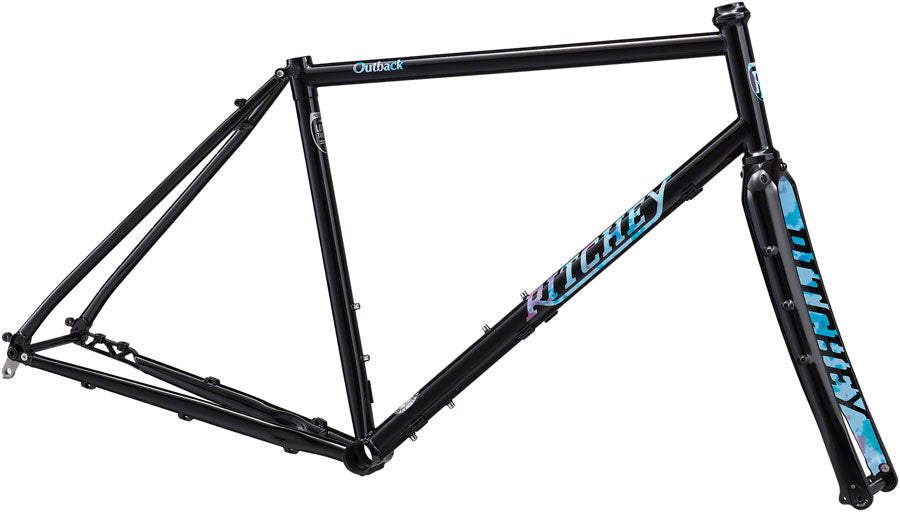

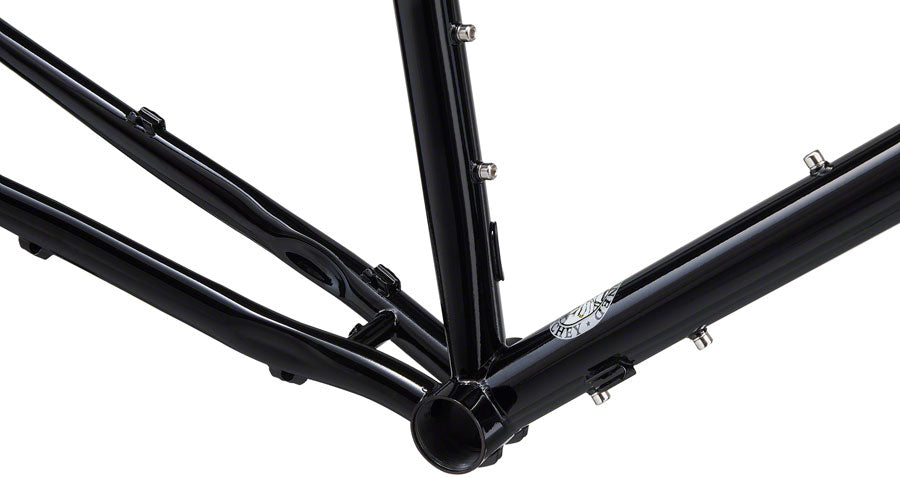

TIG-welded with proprietary triple-butted Ritchey Logic steel tubing that now sports an updated one-piece truss design for flat mount brakes
| Size |
Large |
| Top Tube (Effective) |
570mm |
| Chainstay |
453mm |
| Head Angle |
71 Deg |
| Seat Angle |
73 Deg |
| Headset |
IS42/28.6 L IS42/30 |
| Bottom Bracket |
68mm English |
| Seatpost |
27.2mm |
| Front Derail |
28.6mm |
| BB Drop |
68mm |
| Stand Over |
806mm |
| Color |
Black/Tie Dye |
