One Bike to Rule All Trails
Capability, Control, Personalization

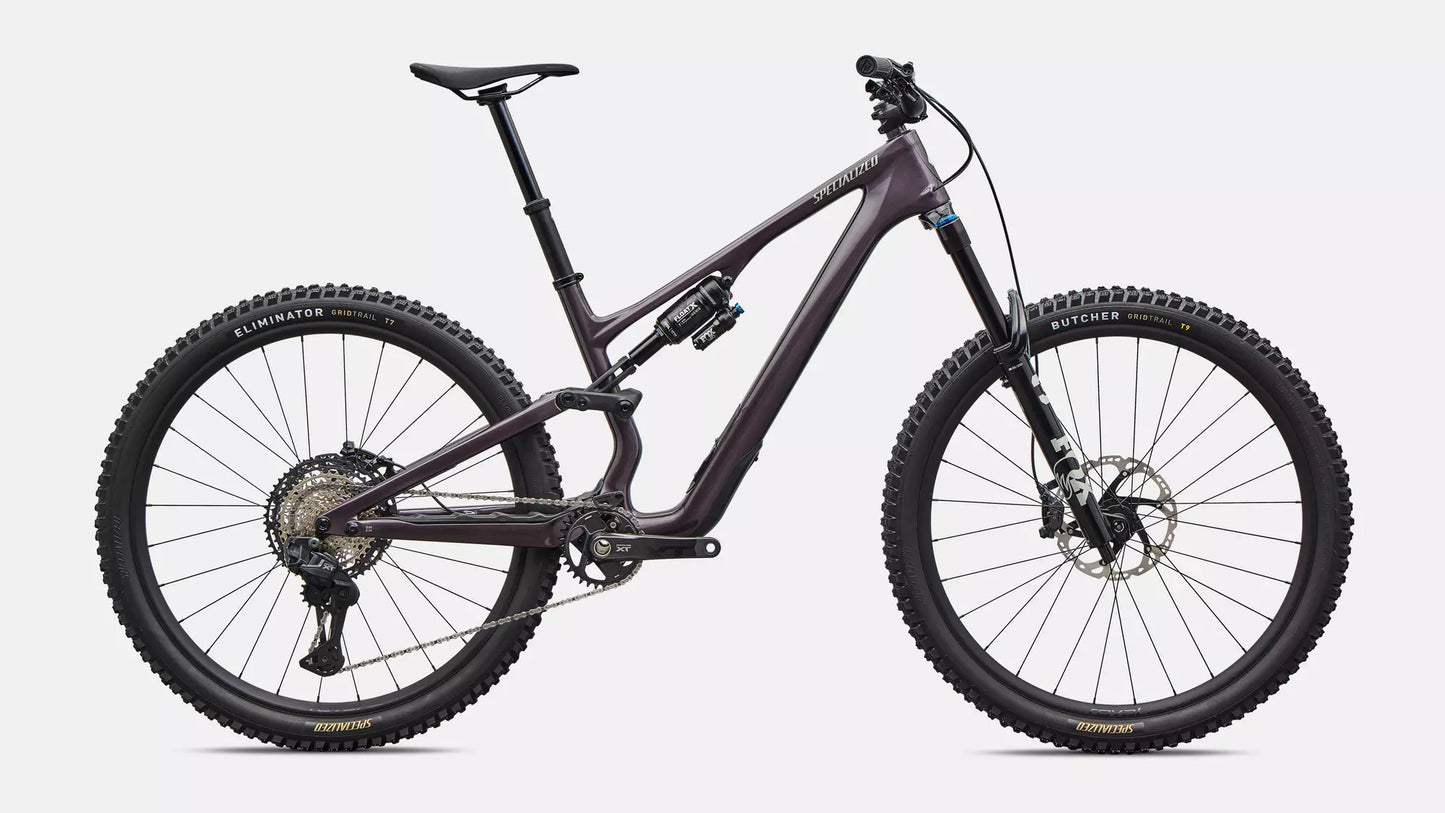

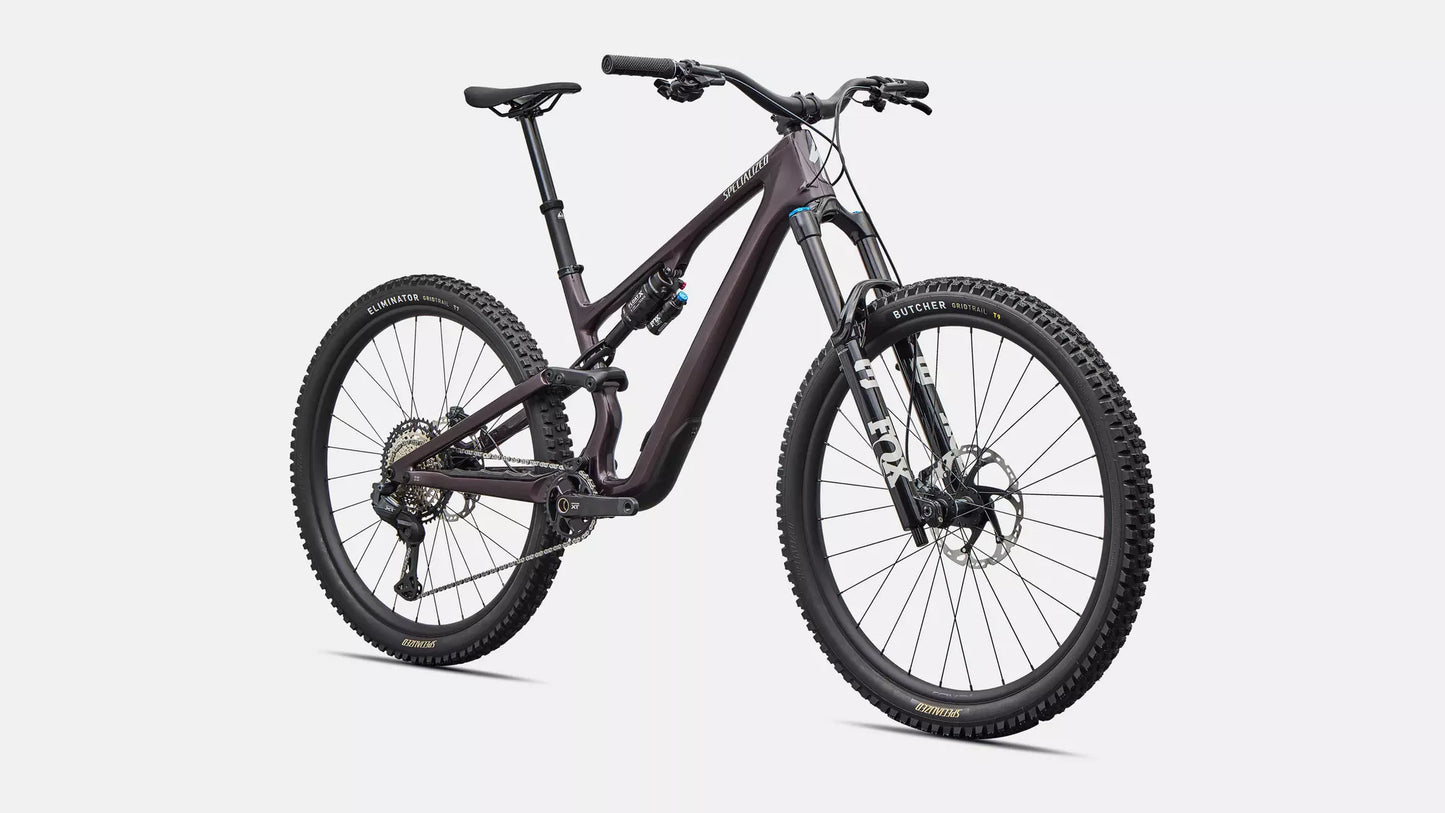

The all-new Stumpjumper 15 EVO obliterates every trade-off in the trail game. It’s the ‘Bike of the Year’ winning Stumpy 15 you know, turned up to 11—with a longer-travel 160mm FOX fork, external reservoir FOX FLOAT X shock, and a slacker headtube for next-level capability. Devour bumps like a big bike? Check. Short-travel control, playfulness, and efficiency? Double check. A heaping helping of personalization to make it perfect for the only rider who matters—you? Check, check, check.
At a Glance
Use
Trail
Frameset
FACT 11m carbon chassis w/ SWAT
Suspension
Front: 160mm FOX FLOAT 36 Performance Elite, GRIP X2<br> Rear: 145mm FOX FLOAT X GENIE Performance Elite
Drivetrain
Shimano XT Di2
Wheels
Traverse Alloy/DT Swiss 370
Weight
31lbs. 14.8oz.
- Seat Binder
- Alloy, 38.6mm
- Frame
- FACT 11m carbon chassis and rear-end, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal brake and dropper cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel
- Fork
- FOX FLOAT 36 Performance Elite, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm Kabolt axle, 44mm offset, S1:150mm of travel, S2-S6:160mm of travel

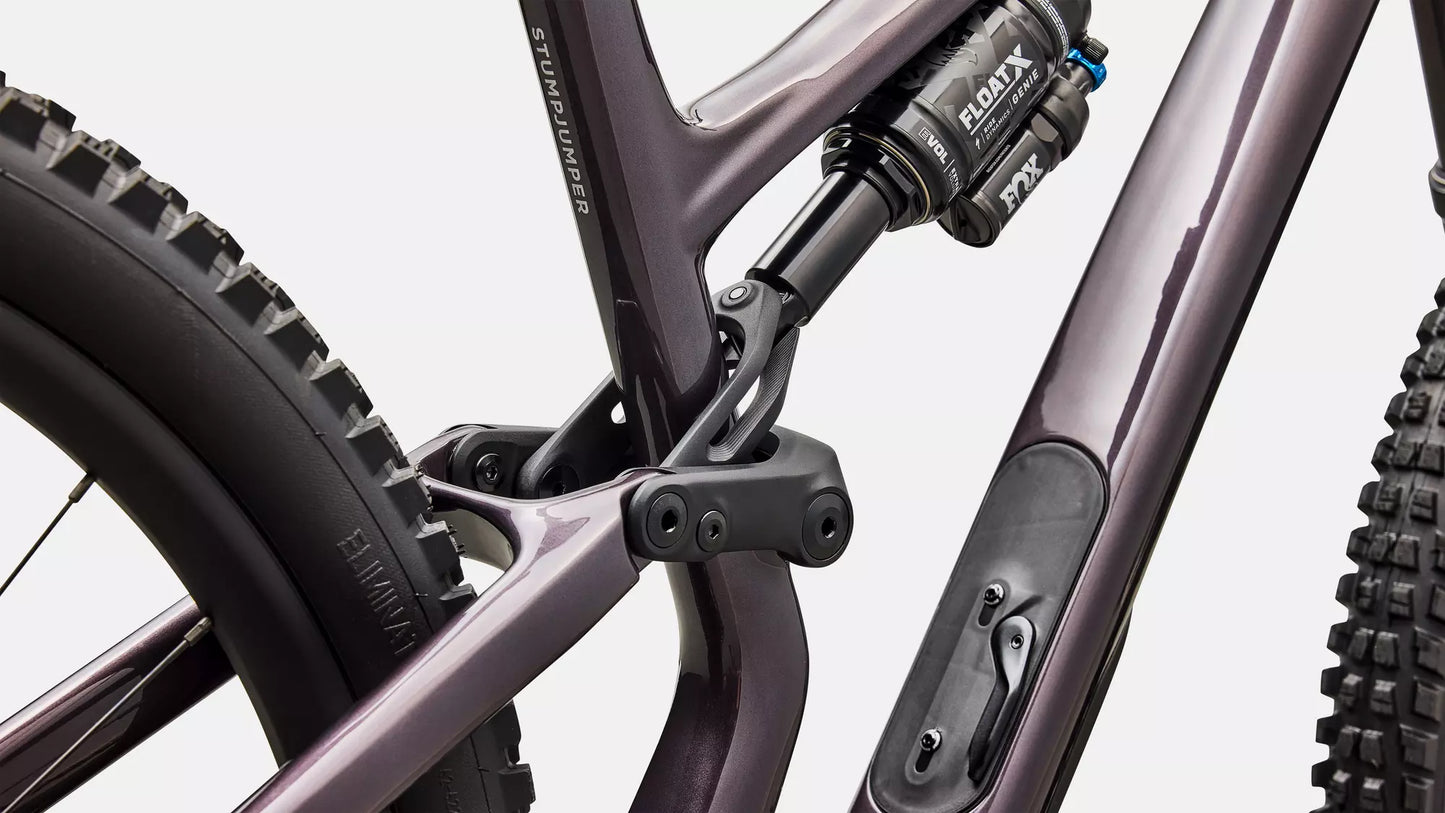

- Rear Shock
- FOX FLOAT X Performance Elite with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSC adjustment, LSR adjustment, 210x55mm
- Front Brake
- Shimano Deore XT brake, 4 piston, Metal pad w/fin, 203mm rotor
- Rear Brake
- Shimano Deore XT brake, 4 piston, Metal pad w/fin, S1-S2: 180mm, S3-S6: 203mm rotor
- Shift Levers
- Shimano XT Di2
- Rear Derailleur
- Shimano XT Di2, 12-speed
- Chain
- Shimano XT M8100, 12-speed w/ quick link
- Cassette
- Shimano XT M8200, 12-speed, 10-51
- Crankset
- Shimano XT, 55mm chainline, 32T, S1-S3: 165mm, S4-S6: 170mm
- Bottom Bracket
- Shimano, BB-MT801, Threaded
- Front Tire
- Butcher, GRID TRAIL casing, GRIPTON® T9 compound, TLR, 29X2.4
- Rear Tire
- Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, TLR, S1-S2: 27.5x2.4, S3- S6: 29x2.4"
- Front Wheel
- Roval Traverse 29" Rim, hookless alloy, 30mm inner width, tubeless ready, DT Swiss 370, 15x110mm, 28h, Sapim Force Spokes, 6 bolt
- Rear Wheel
- Roval Traverse Rim, hookless alloy, 30mm inner width, tubeless ready, DT Swiss 370, 15x110mm, 28h, Sapim Force Spokes, 6 bolt
- Inner Tubes
- Standard, Presta Valve
- Stem
- Alloy Trail Stem, 35mm bar bore
- Saddle
- Bridge Comp, Hollow Cr-mo rails S1-S2:155mm, S3-S6:143mm
- Grips
- Deity Lockjaw Grips
- SeatPost
- PNW Loam Dropper, tool-less travel adjust, Range lever, 34.9, S1: 125mm, S2: 150mm, S3: 175mm, S4-S5: 200mm, S6: 225mm
- Handlebars
- Specialized, 6000 series alloy, 6-degree upsweep, 8-degree backsweep. S1-S2: 780 width, 20mm rise: S3-S6: 800 width, 50mm rise
- SWAT
- SWAT 4.0 internal downtube storage
- Product ID
- 291645
- Weight
- 14.48 kg (31 lb, 14.8 oz)
- Weight Size
- S4
